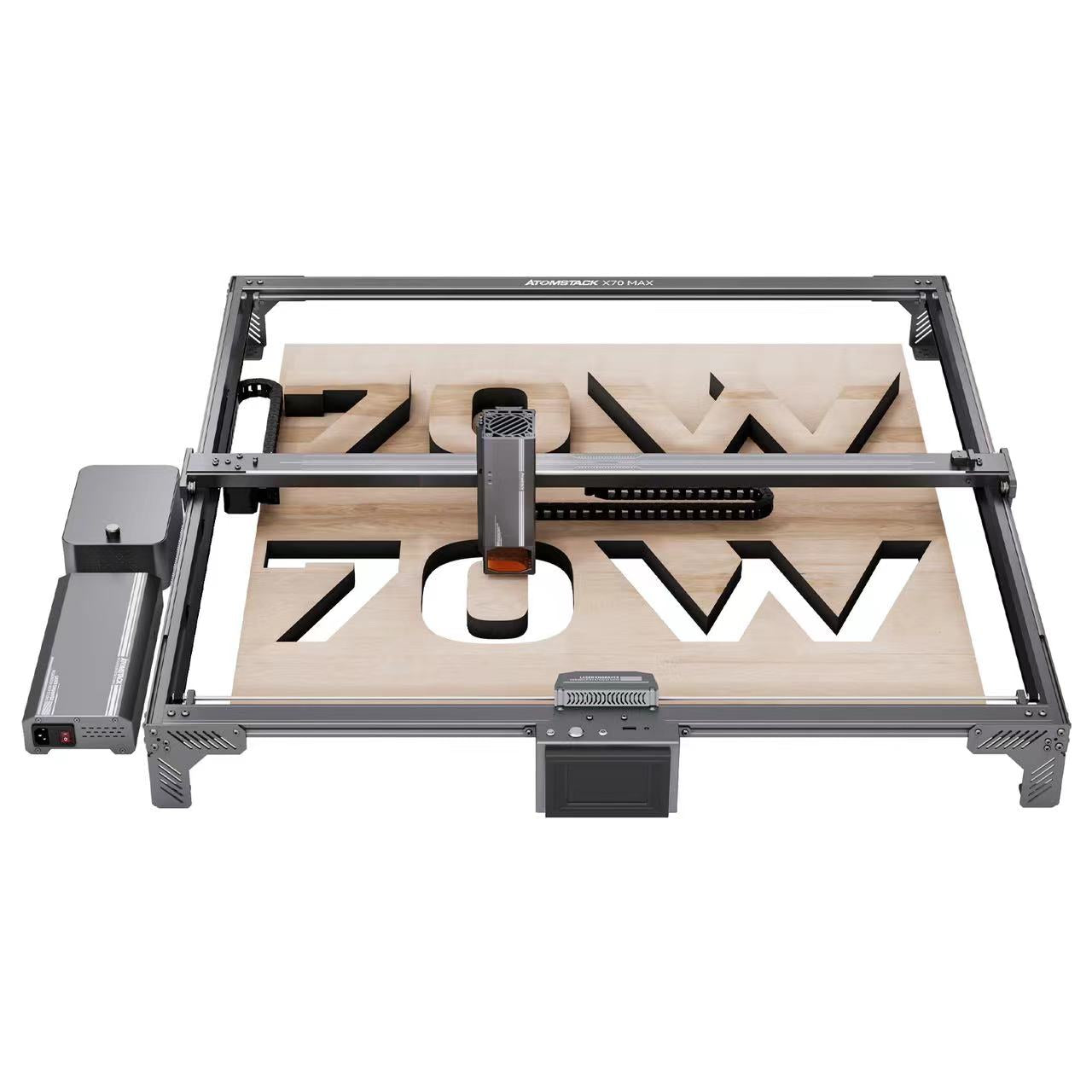

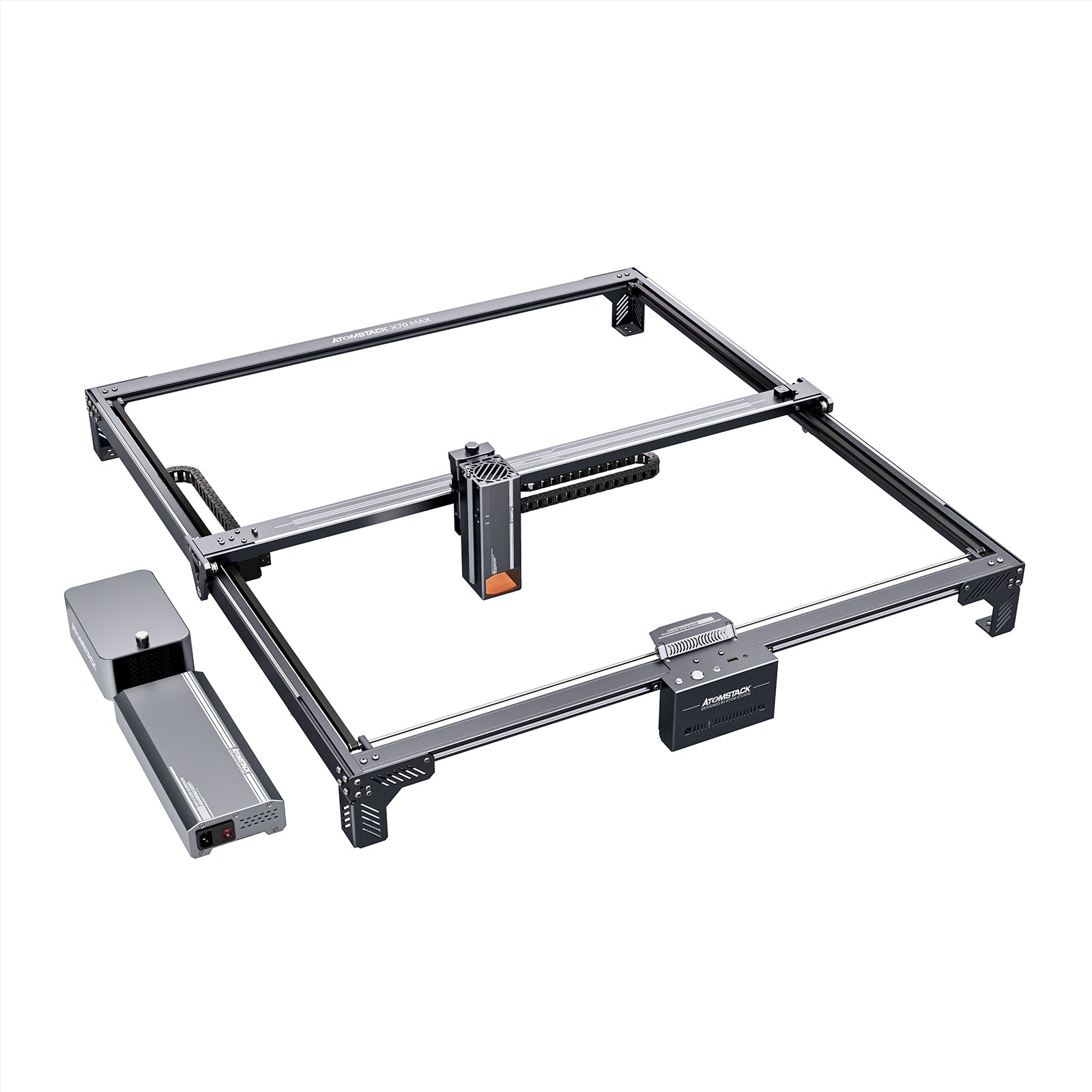

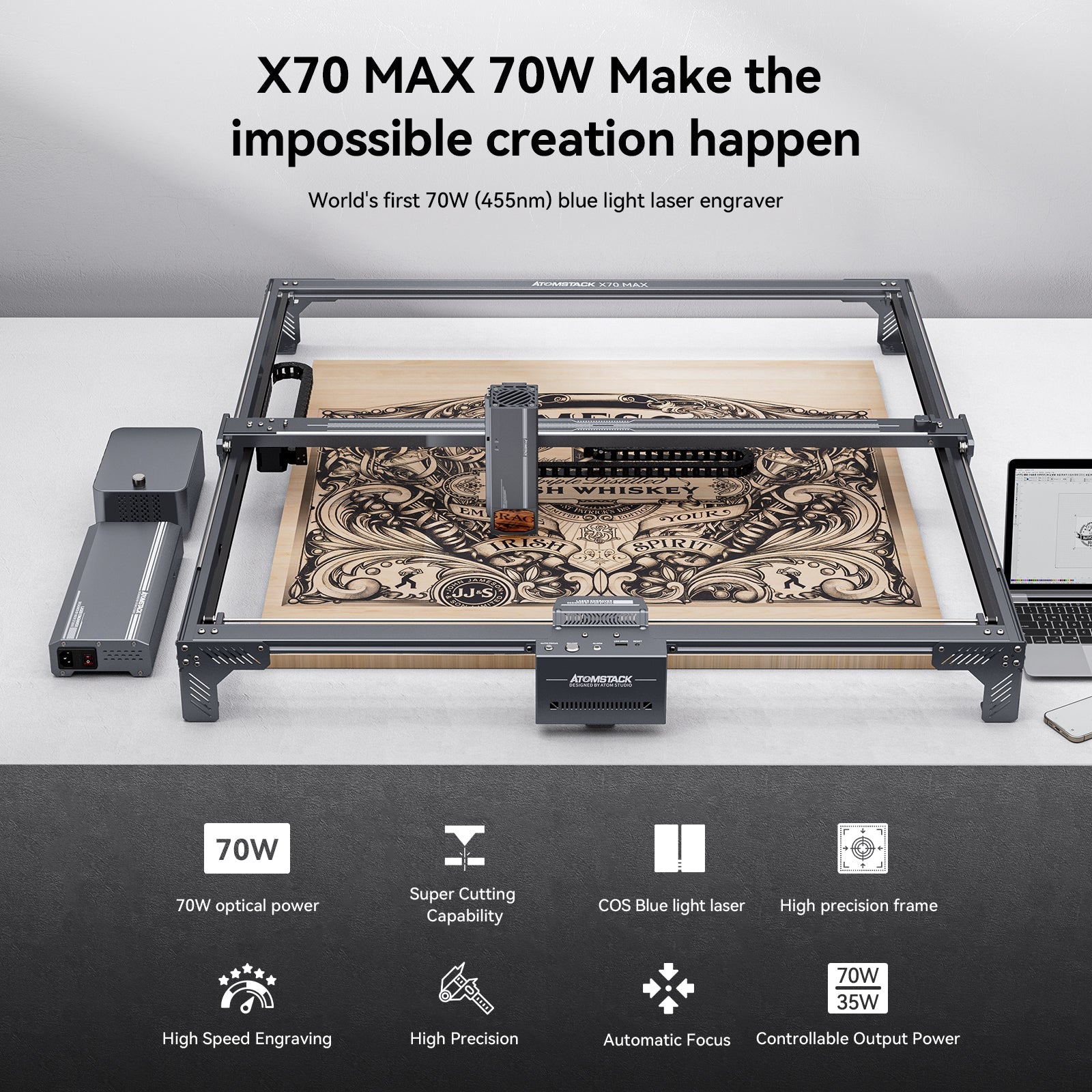

Atomstack X70 Max 360W Laser Engraver

Characteristics:

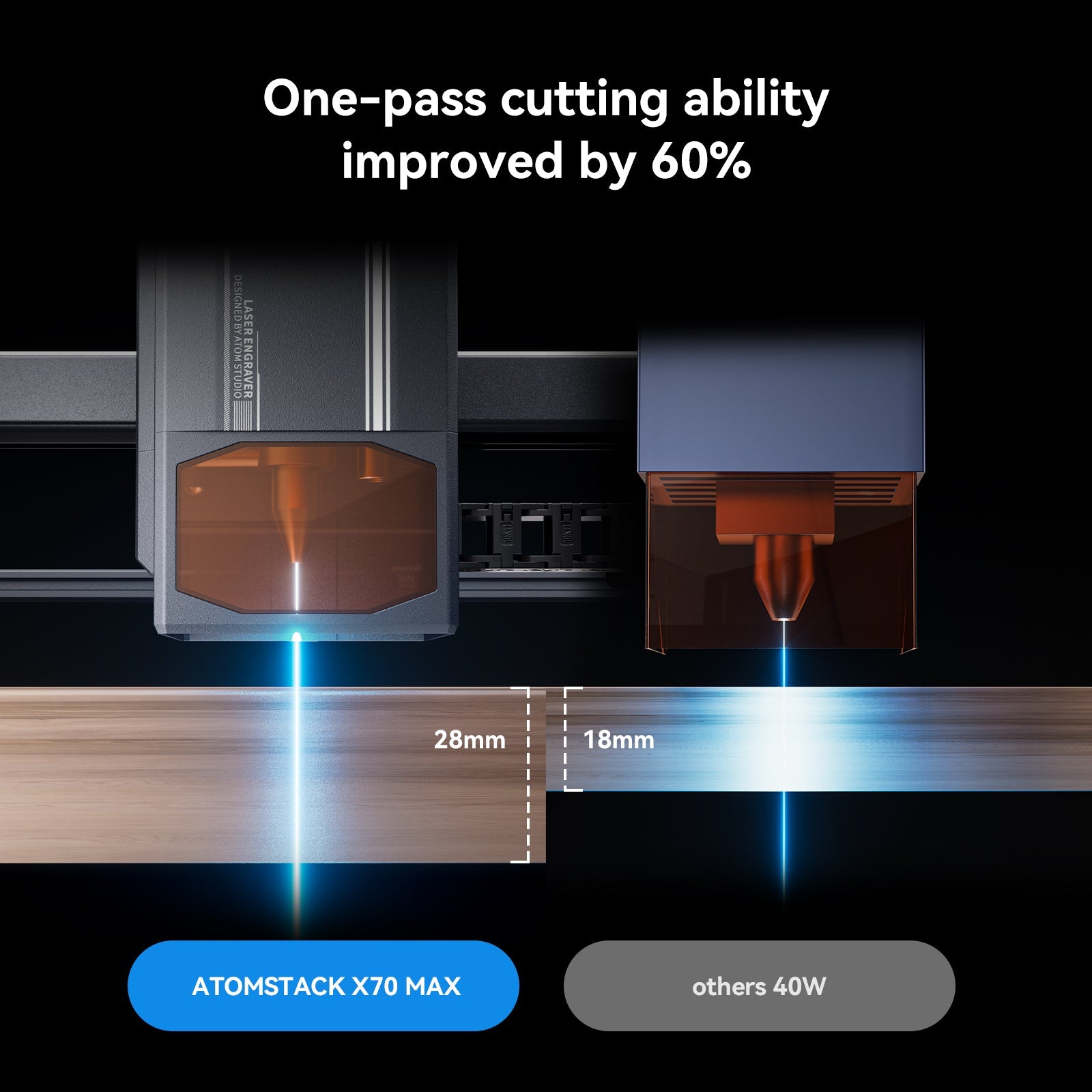

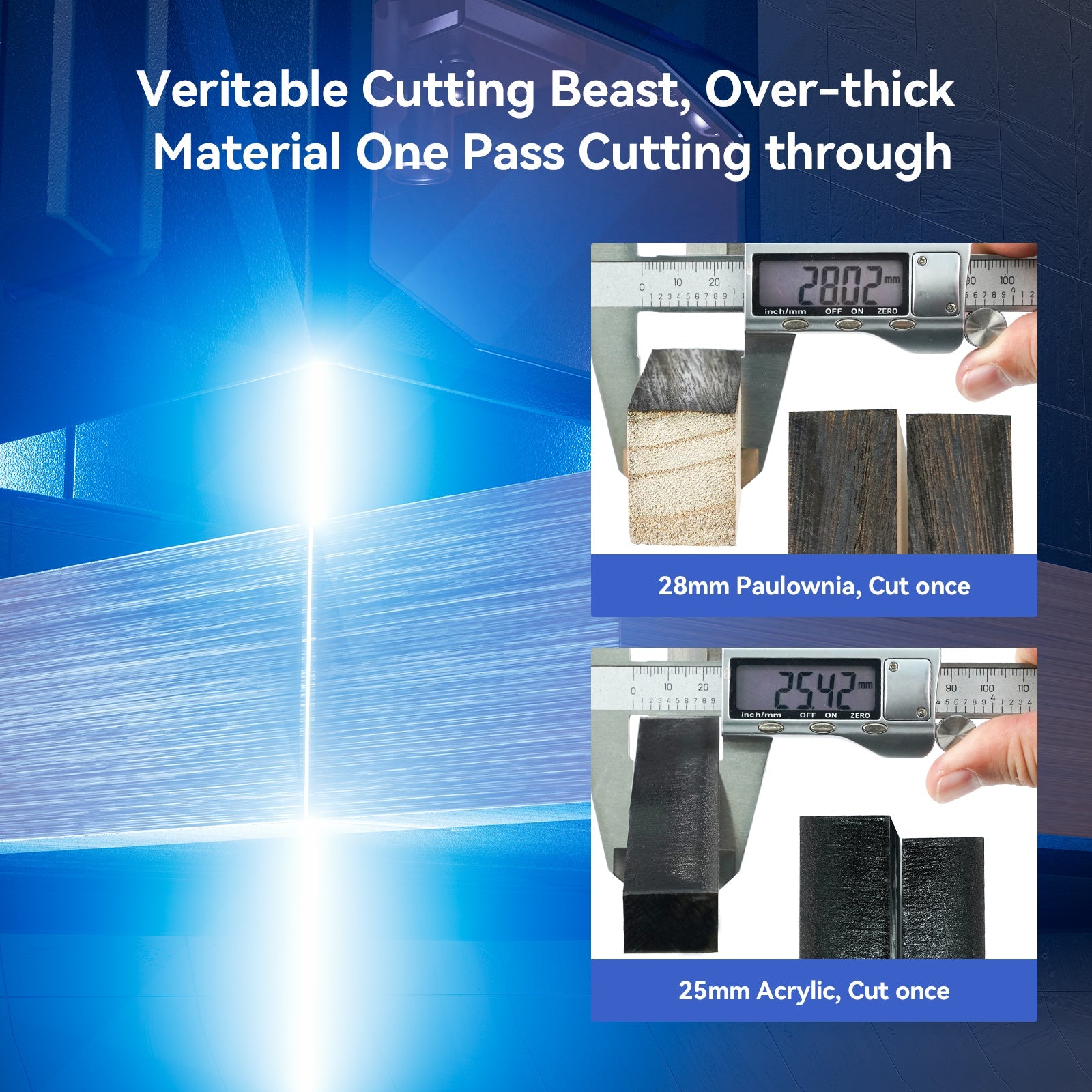

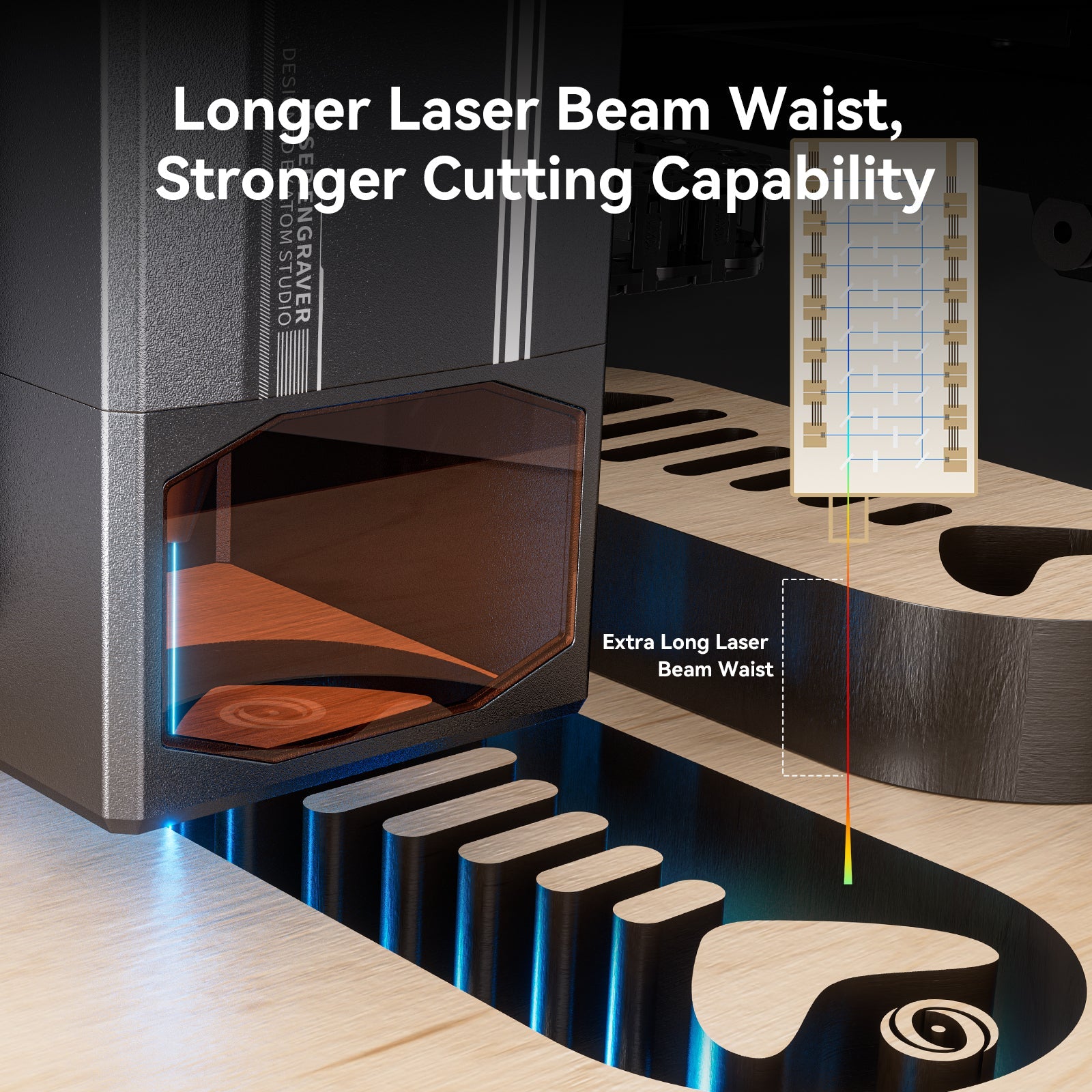

1. Powerful cutting force: capable of cutting 25mm black acrylic, 12mm MDF density board, 30mm pine board, 0.3mm stainless steel sheet

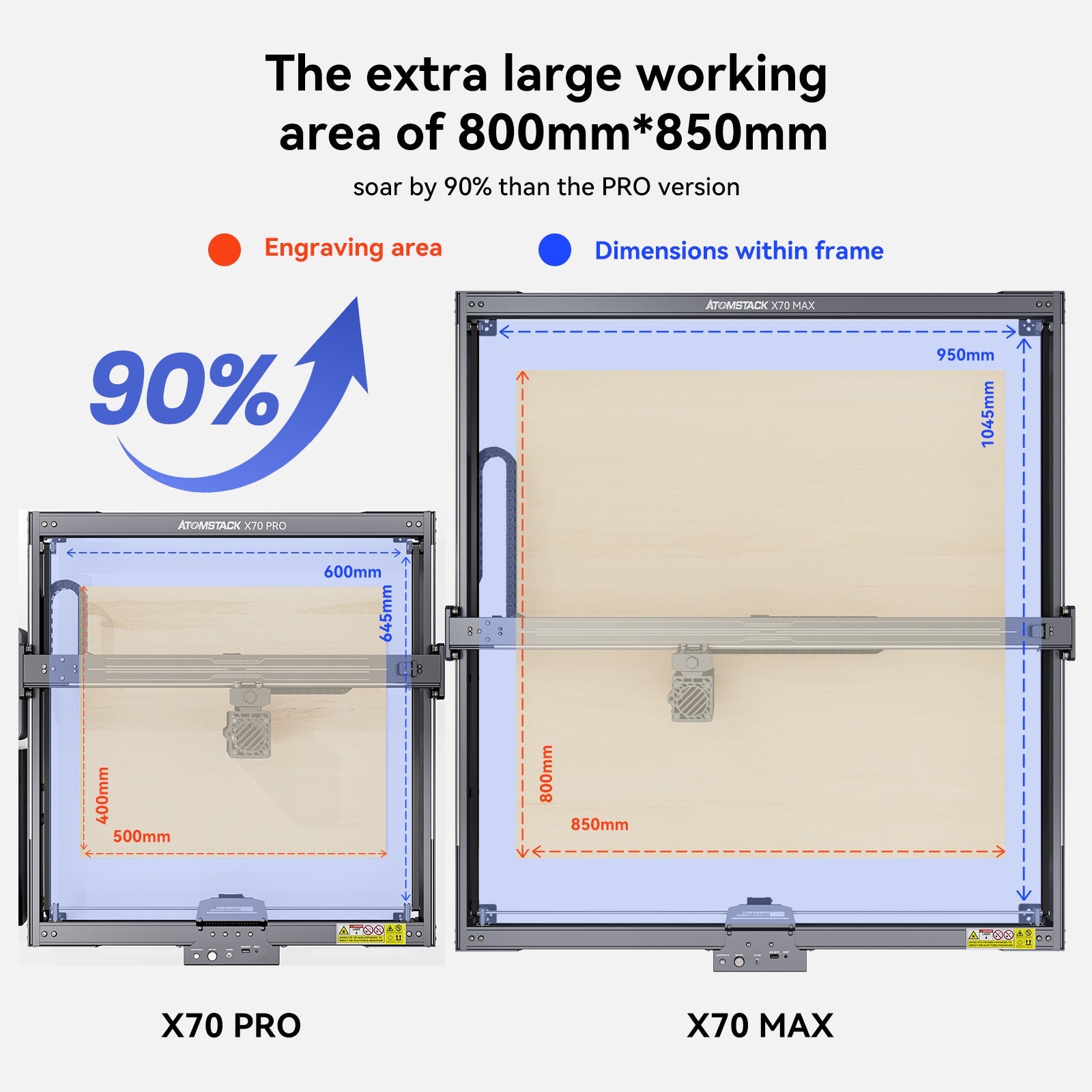

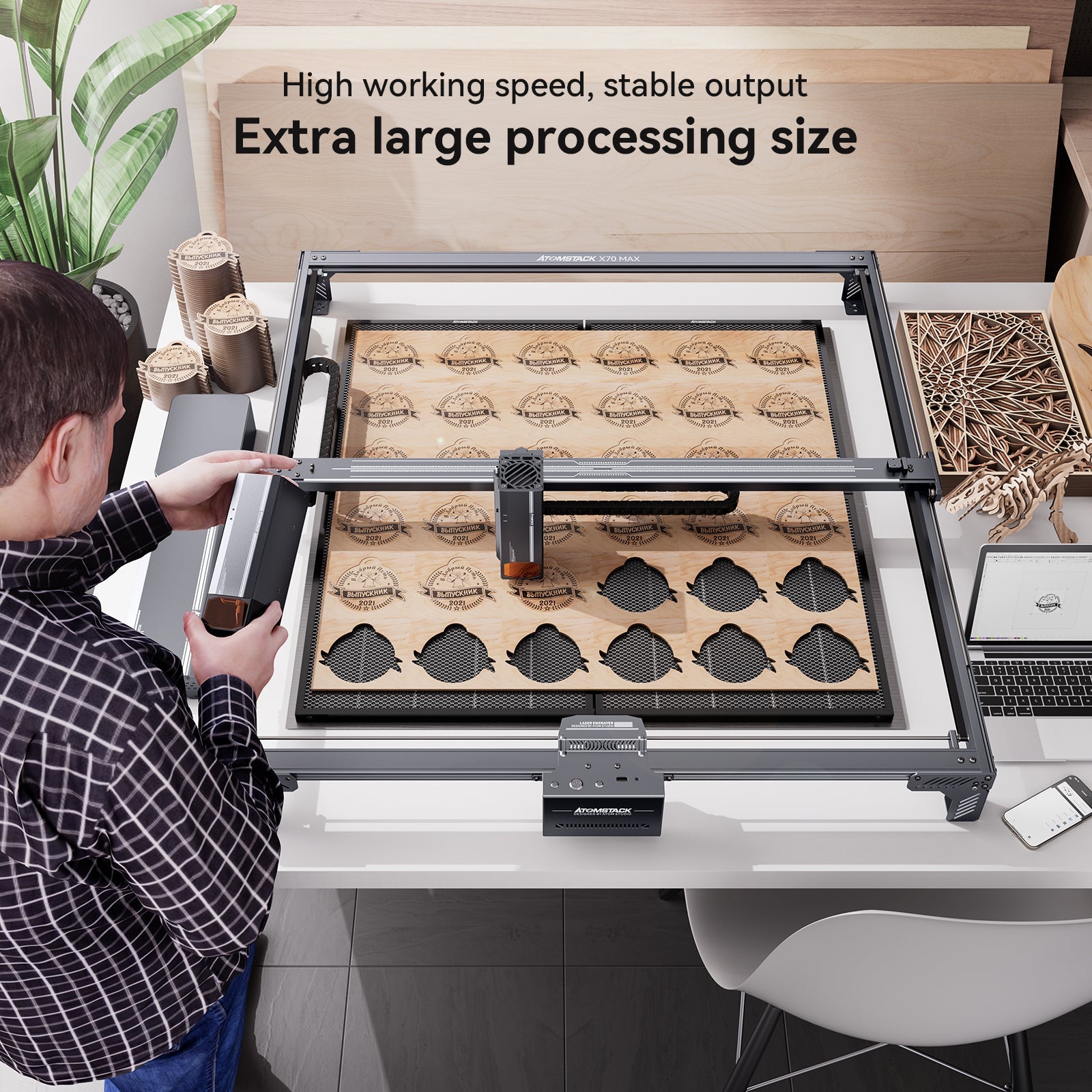

2. Max version processing area: The most professional blue light laser cutting and engraving machine, standard 800*850mm large working area, frame can accommodate materials up to 1045*950mm with four support feet and fixed holes for stable operation on the workbench

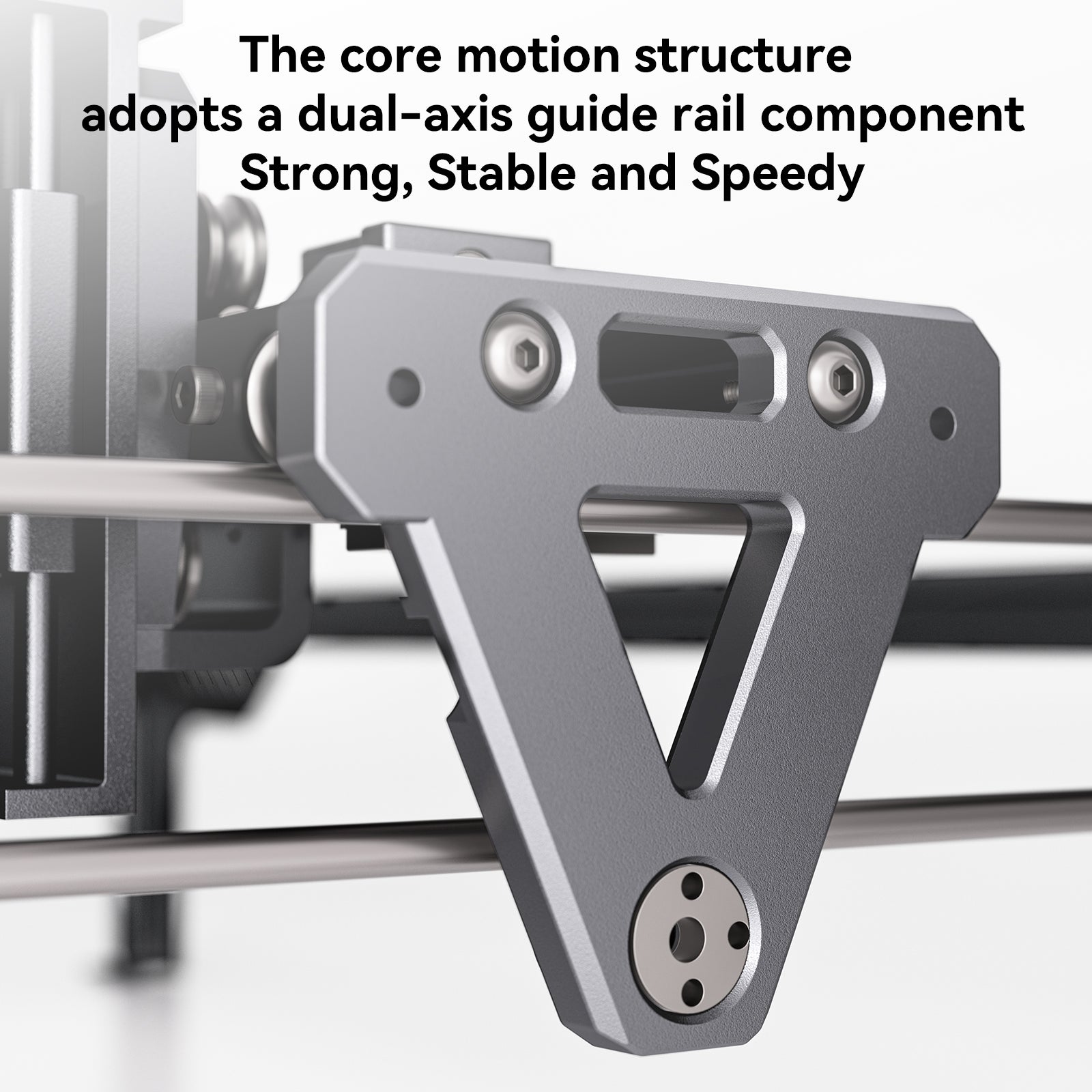

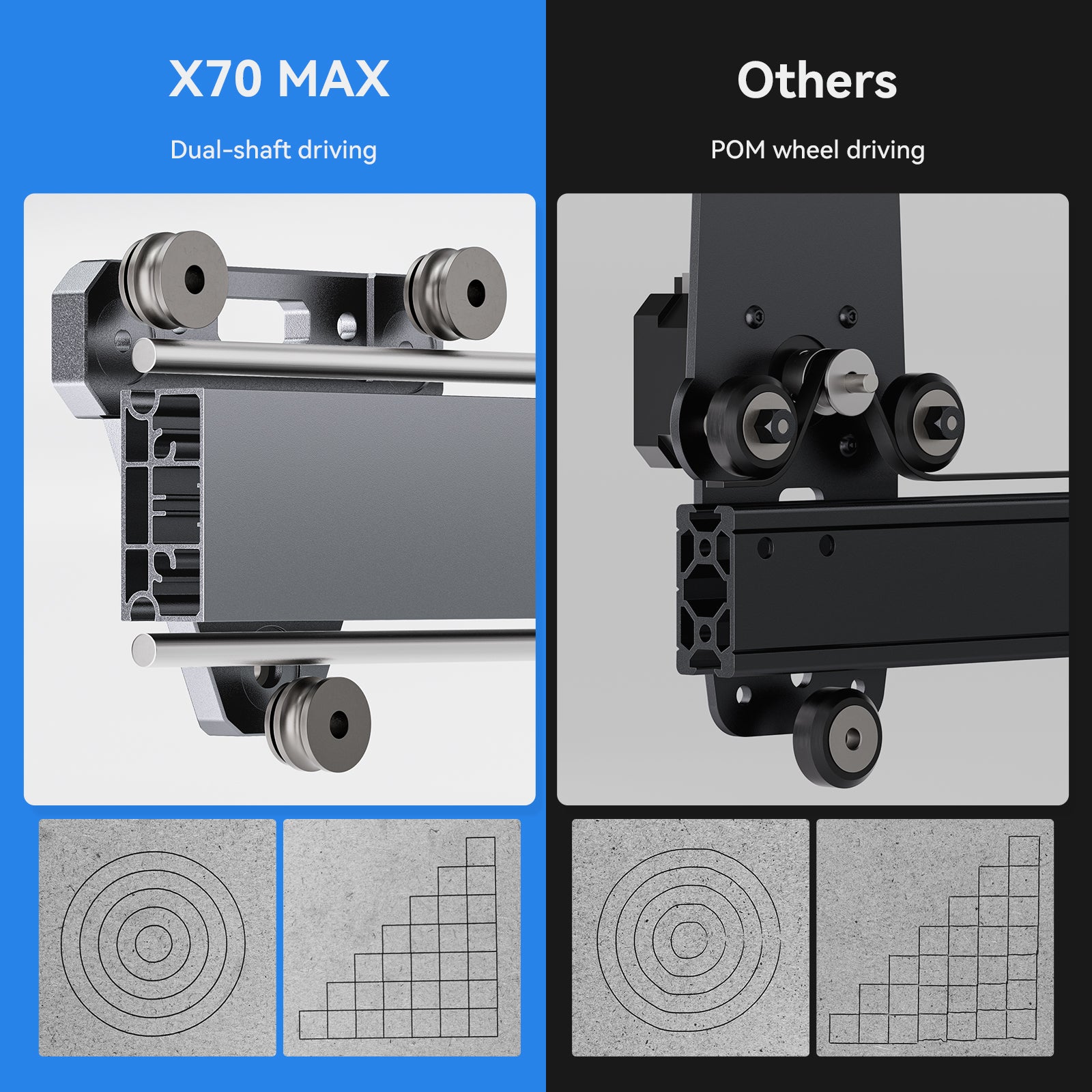

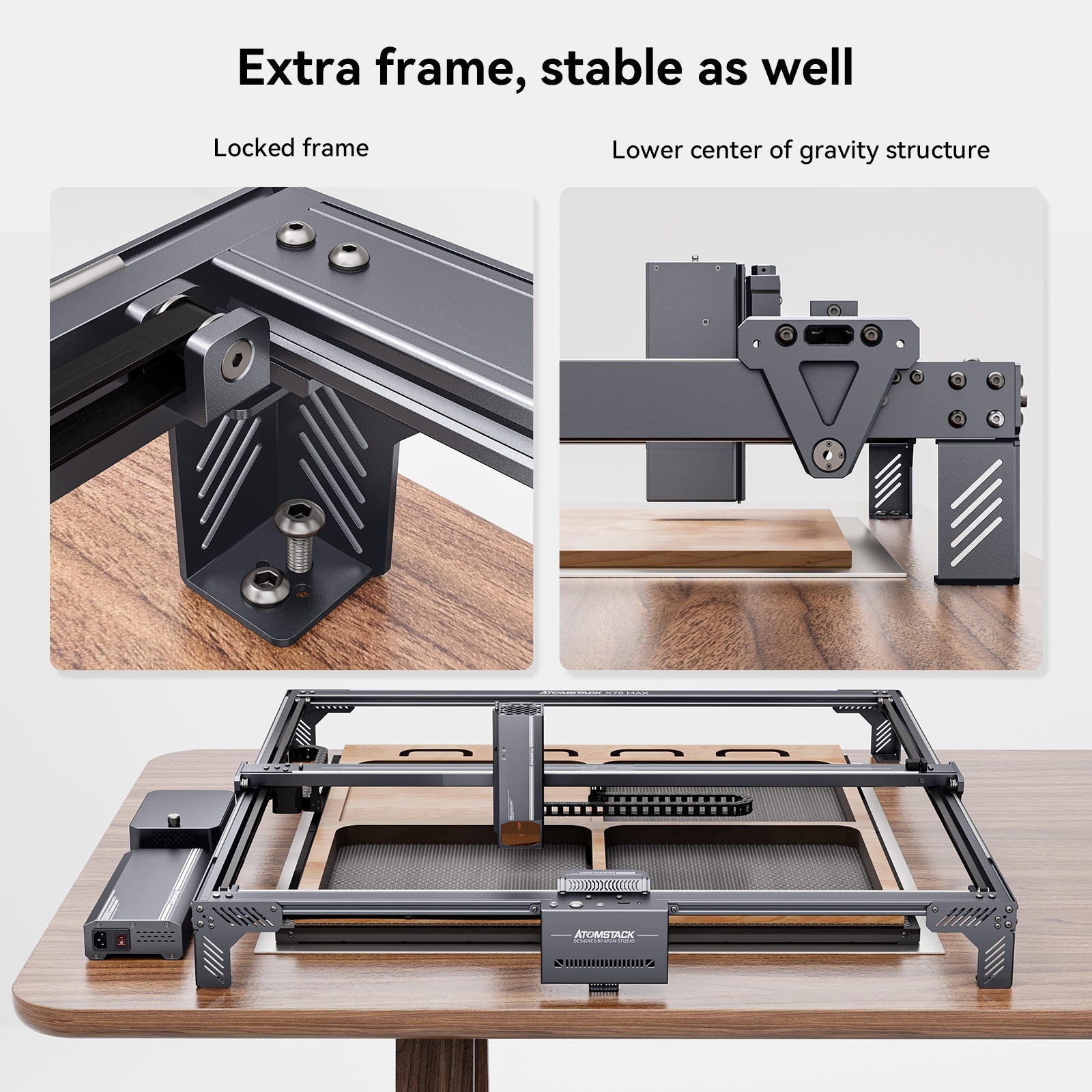

3. New motion structure: To ensure high-speed stable operation, the machine's three axes adopt a new low center of gravity dual-axis guide rail structure, stable operation at high speed, quiet, suitable for heavy-duty engraving and cutting work

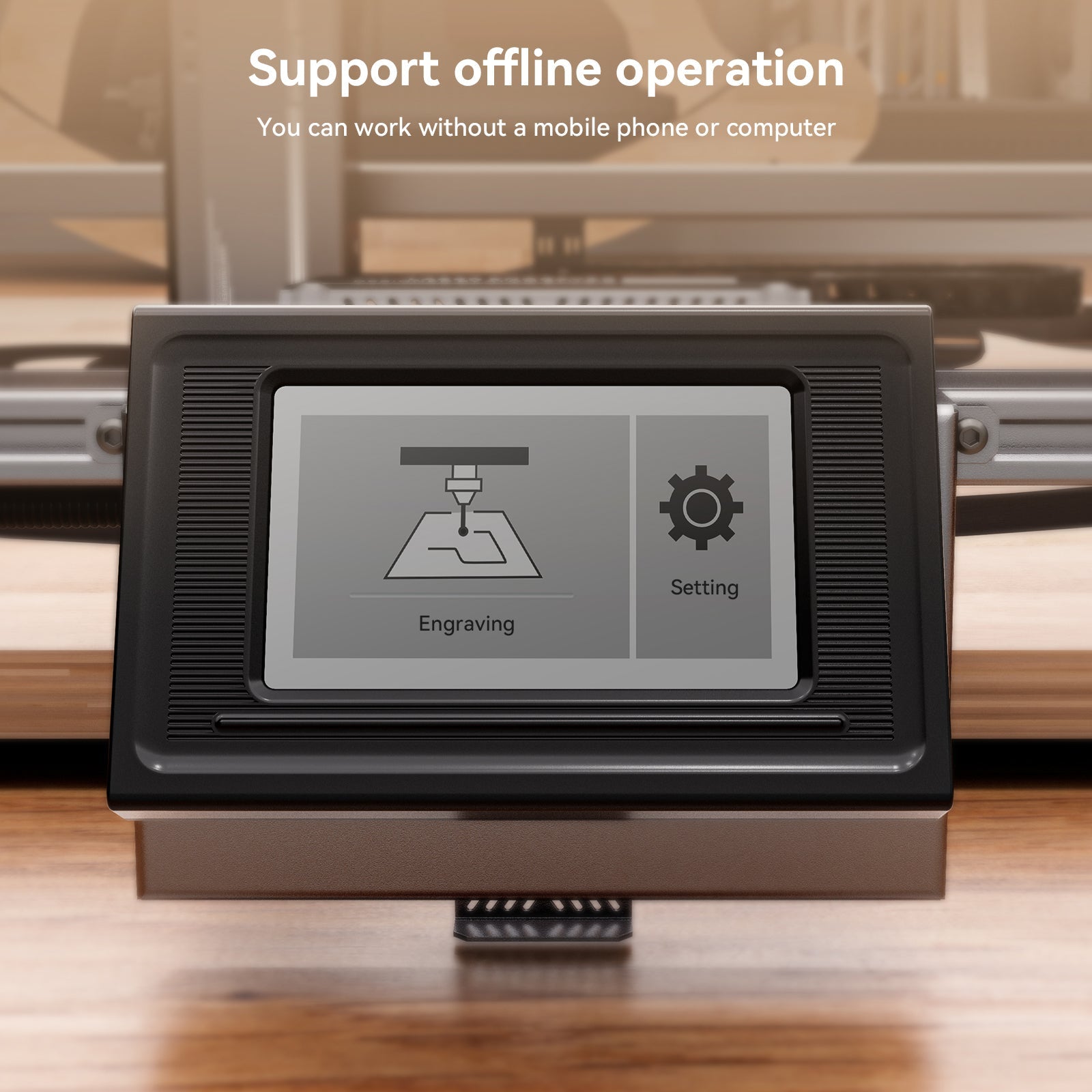

4. Offline work: Product comes with a second-generation smart board and control screen, can work offline without a computer or phone
5. Standard large flow air assist: Maximum 60L/min air assist ensures flawless cutting work, surface of the cut lines does not turn yellow, extends the life of the laser

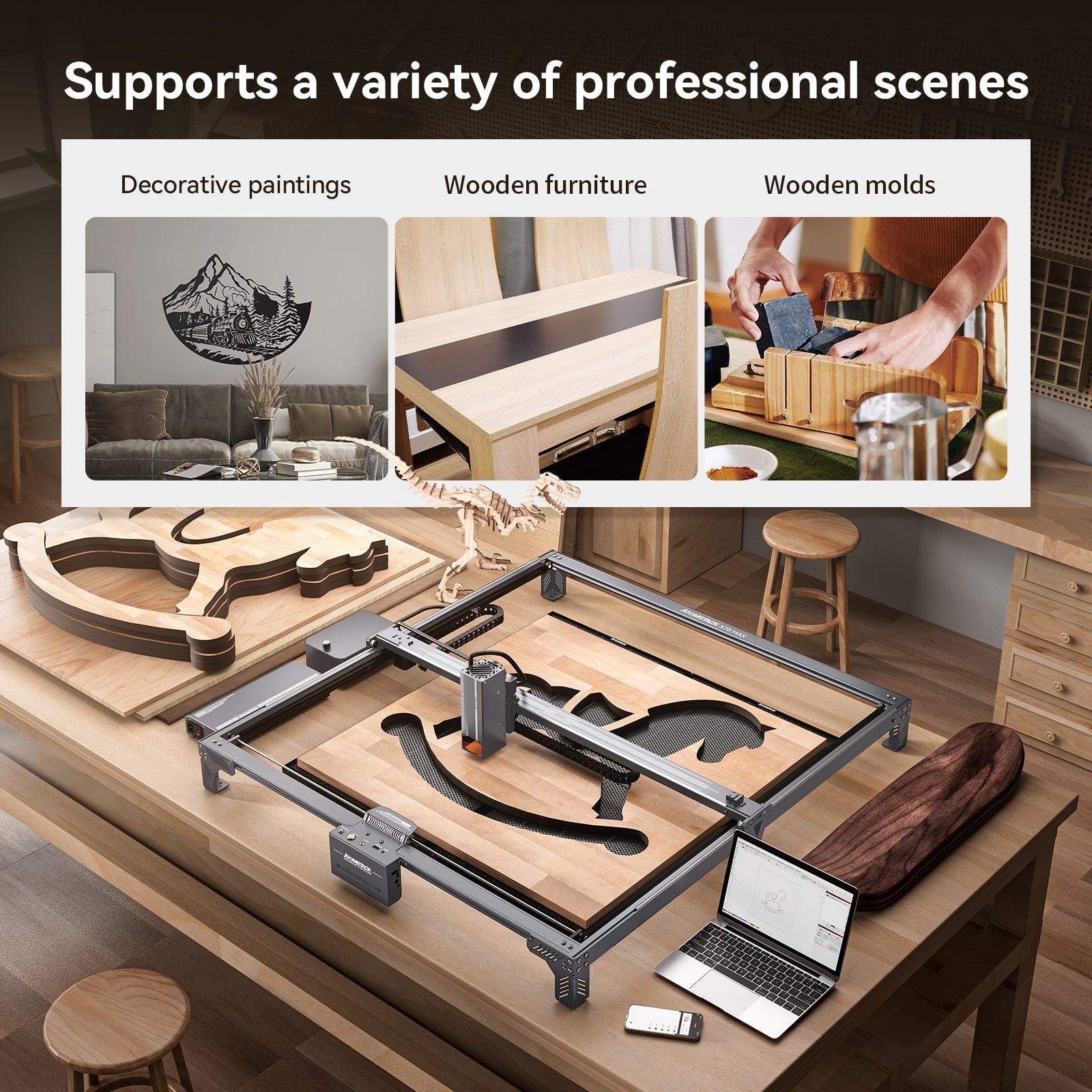

6. Multiple usage scenarios: can work on reflective metals, ceramics, black acrylic, supports woodworking, painting art, DIY creation, billboards, metal marking, clothing design

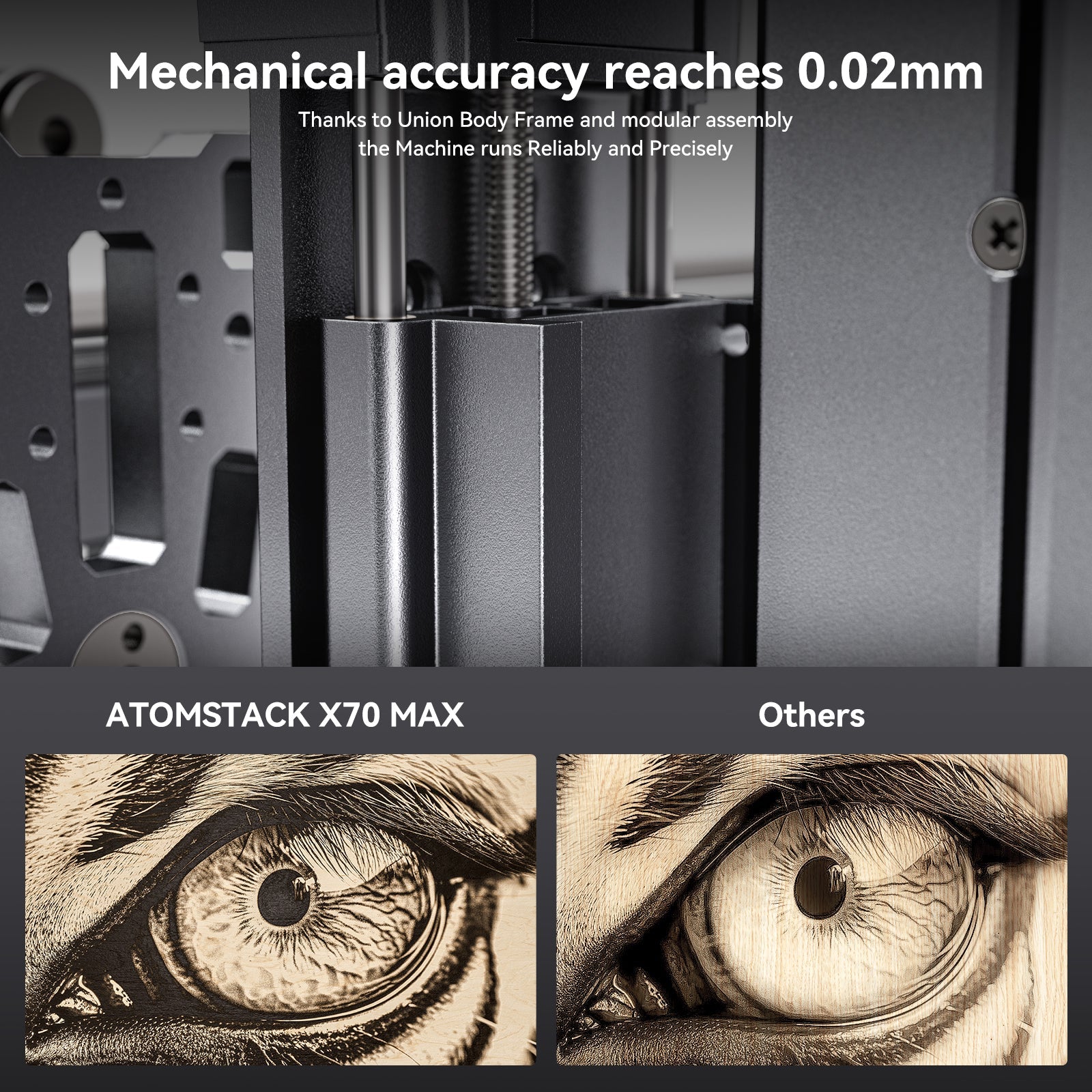

7. Quick accuracy maintenance: at a high-speed operation of 400mm/s, can maintain accuracy of 0.01mm

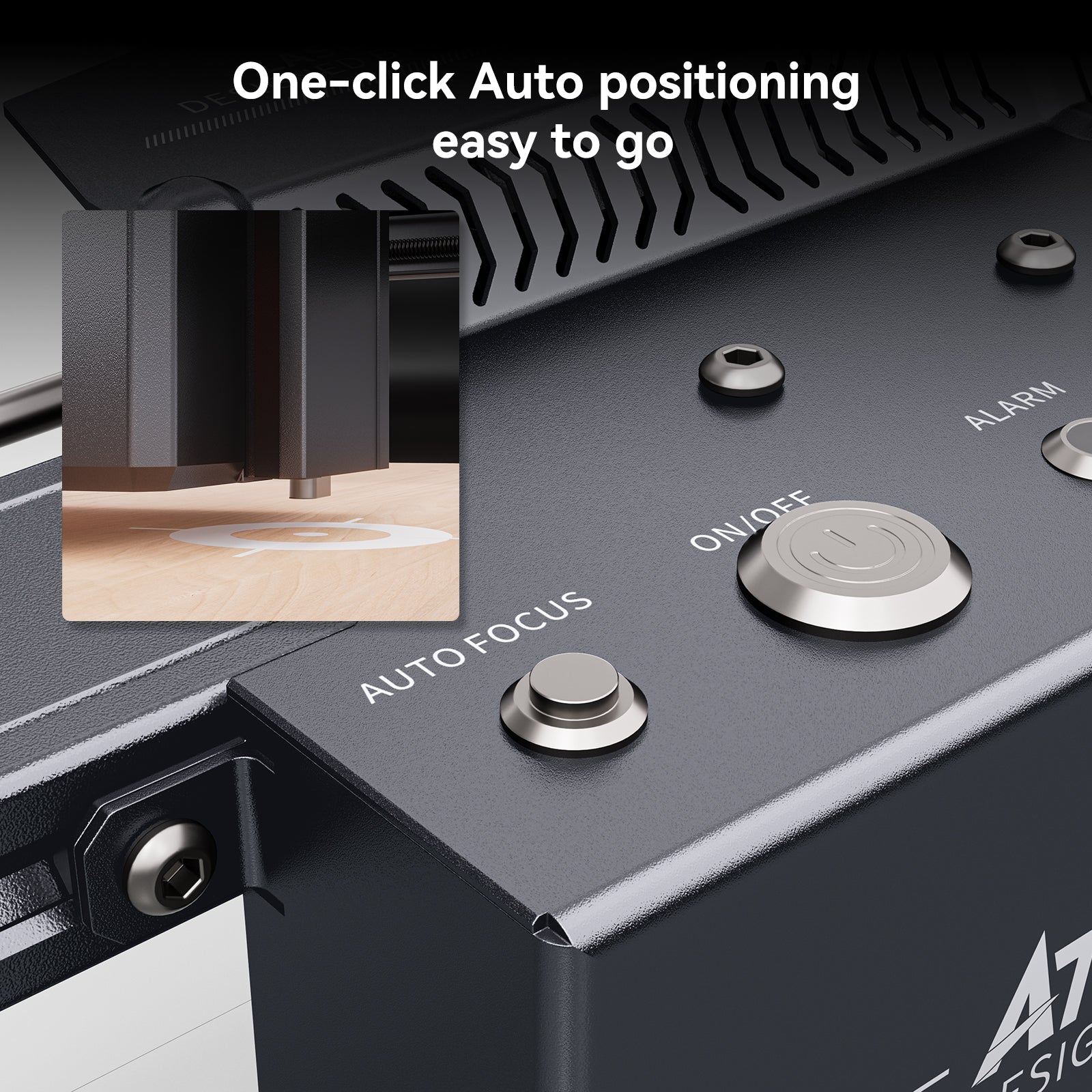

8. Dual-mode focus adjustment: supports manual and automatic focus adjustment, completes focus adjustment within 8 seconds
9. Automatic flame alarm: triggers an alarm and stops working when the wavelength points of the flame spot in the working area exceed 35%, accurate and fast
10. Intelligent cooling system: opens the double-layer air guide hood air assist, automatically turns on air assist during cutting for better heat dissipation and cutting effects
11. Power-off resume function: in case of power outage during creation, resumes unfinished creation when power is restored

Tech Specs:

Product Model: Atomstack X70 Max

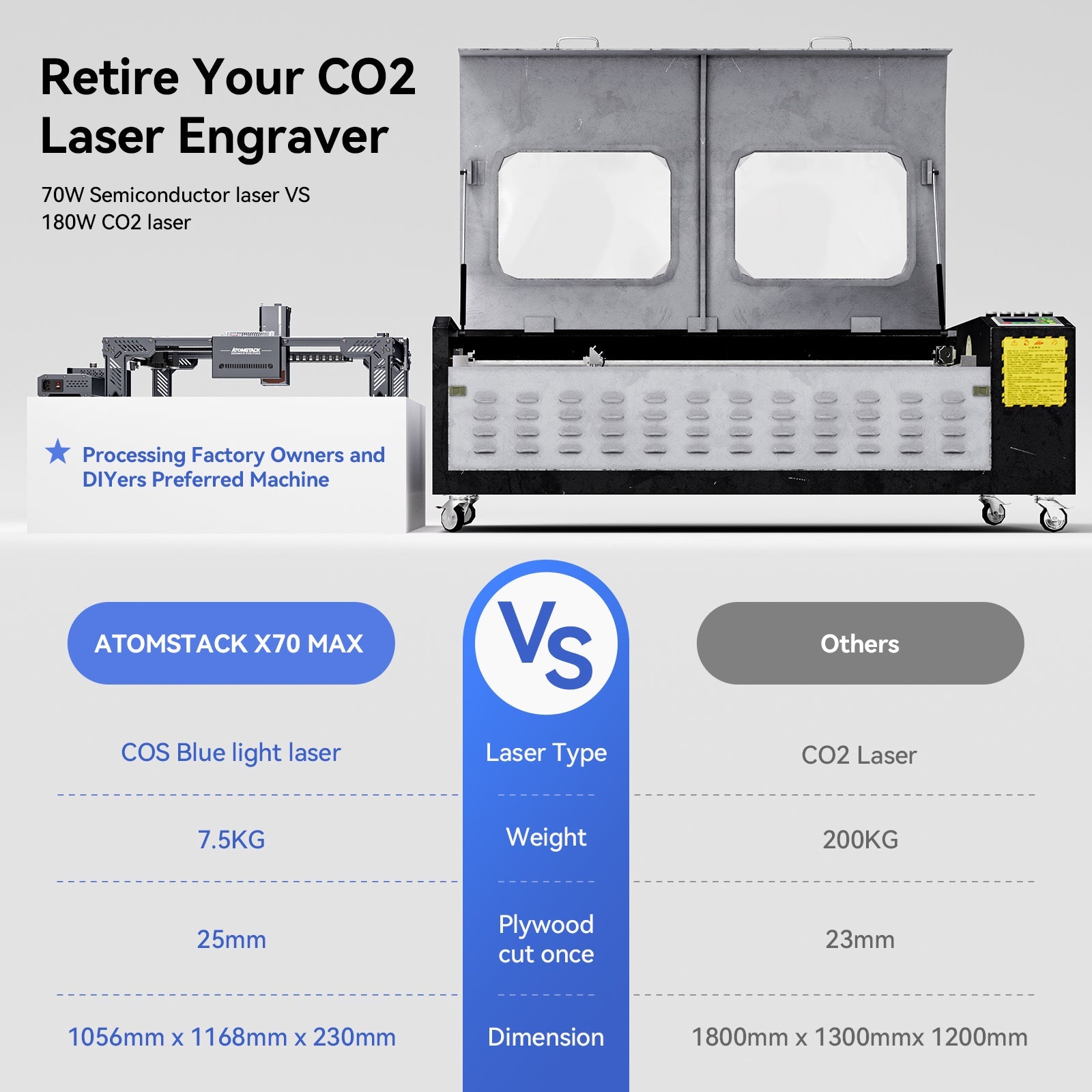

Device Size: 1056*1168*230mm
Engraving Size: 850*800mm
Working Principle: Engraving / Cutting
Engraving Materials: Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplated and painted metal, 304 mirror stainless steel, glass, ceramics, cotton, slate;
Cutting Materials: Thin steel plate, cardboard, non-woven fabric, wood, acrylic, more thin plastic sheets, sponge;
Input Power: 360W

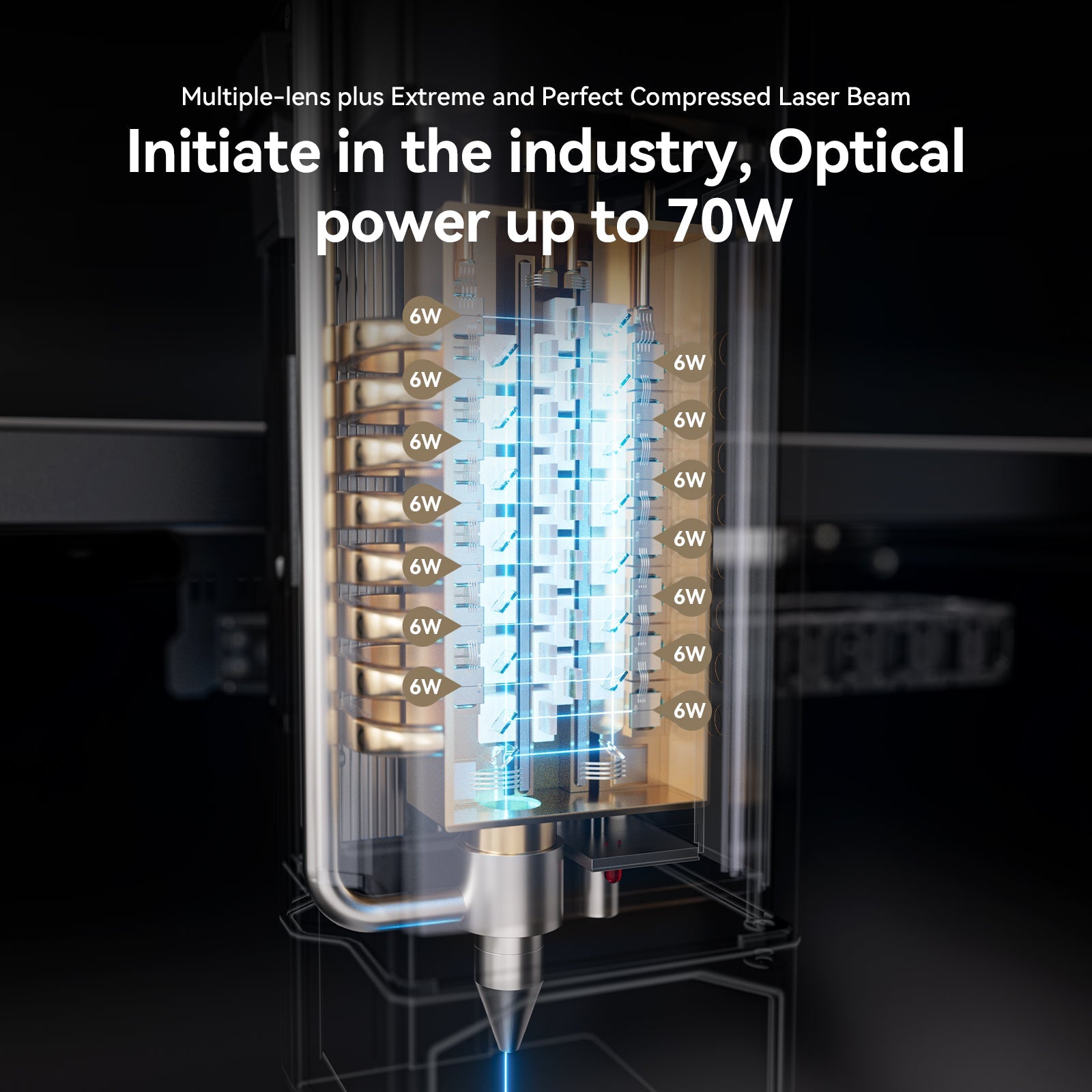

Output Power: 70-77W, 35-39W
Maximum Speed: 400mm/s (24000mm/min)
Laser Wavelength: 455±5nm
Engraving Accuracy: 0.01mm
Repetition Accuracy: 0.1mm

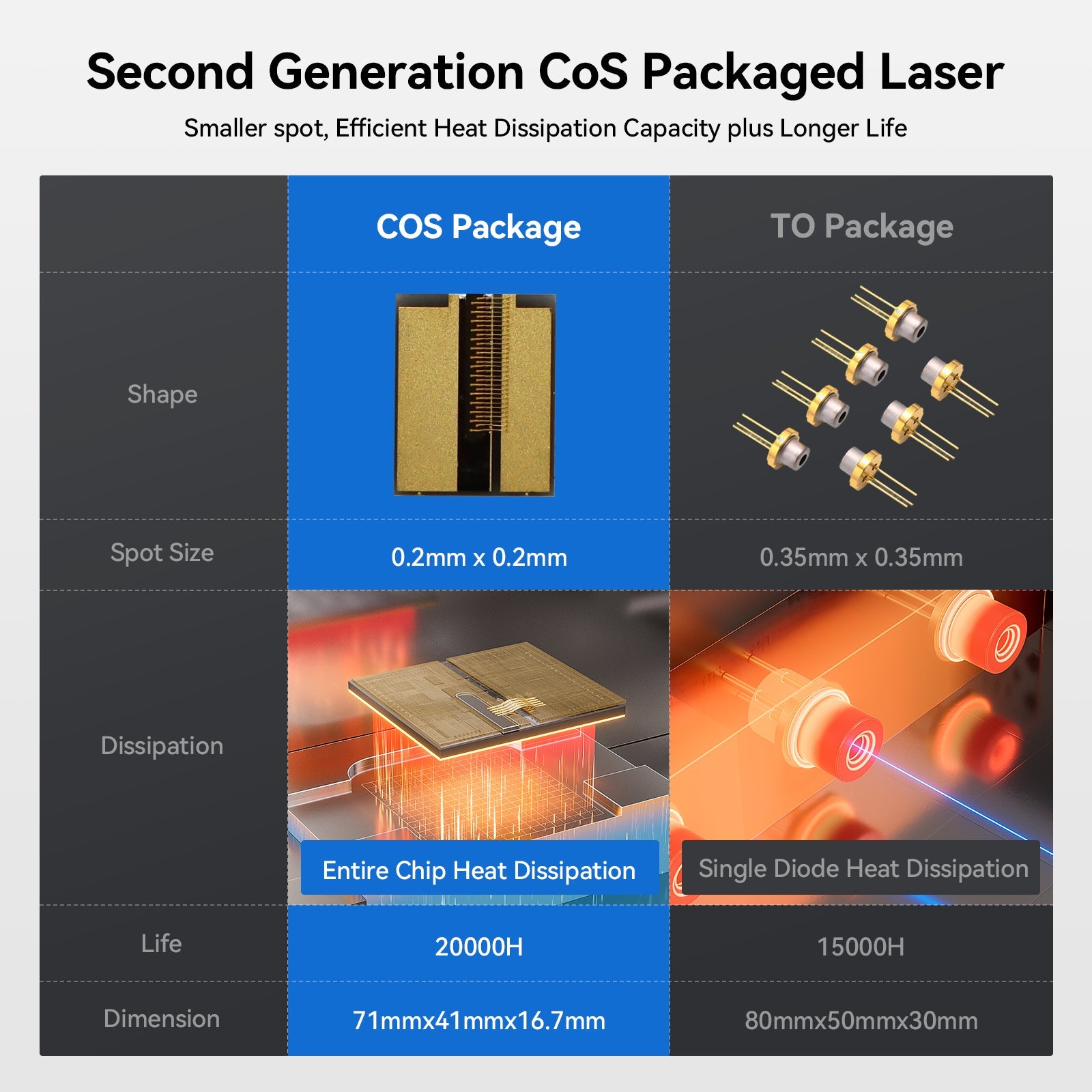

Spot Size: 0.12*0.18mm (70W) / 0.08mm*0.12mm (35W)
Transmission Method: USB transmission
Focus Adjustment Method: Automatic focus + manual focus
Screen Control: 4.3 inches
Connection Support: Type-C, mobile WiFi, touch screen
Support Systems: IOS, Android, Windows, Mac

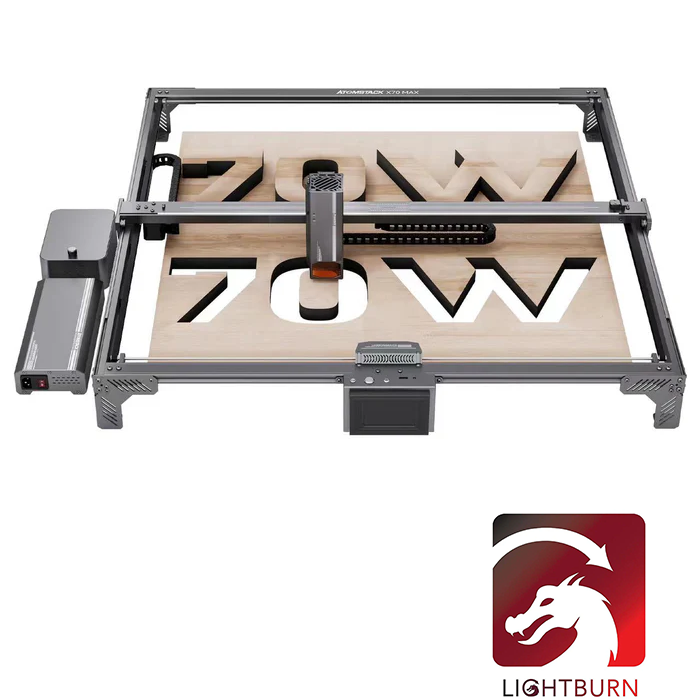

Operating Software: LaserGRBL, LightBurn, AtomStack Studio
Air Flow Rate: 0-60 L/min infinitely adjustable
Power Supply: Input 100-240V AC, 50/60HZ, output 12V 5A
Quality Certification: CE, FCC, RoHS, FDA, PSE

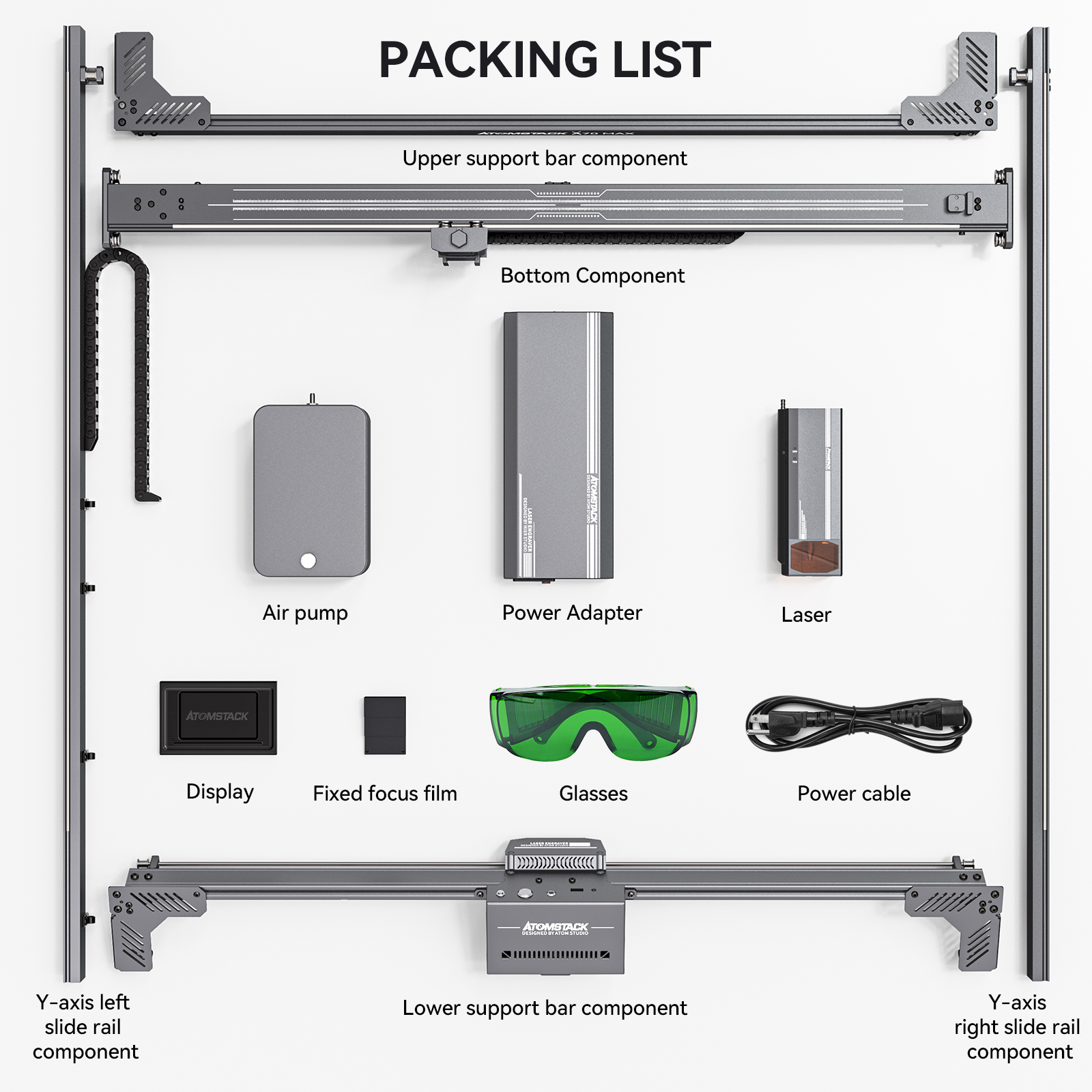

Package:
