Atomstack M4 Pro Portable Dual Laser Engraver
Description
Features:
- Dual-light source module for versatility in materials: 2W 1064nm infrared + 10W 450nm diode lasers.

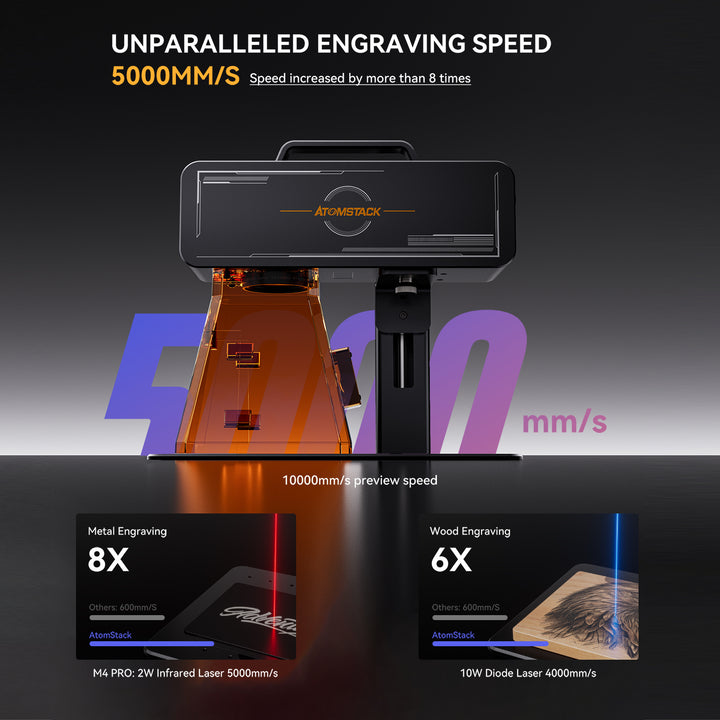

- Industrial-grade galvanometer technology for blazing-fast speeds: 5000mm/s engraving, 10000mm/s preview.
- Ultra-fine laser spot & precise positioning: Detail accuracy of 0.001mm, spot size down to 0.03mm.
- Desktop & handheld 2-in-1 design for versatile applications: 100*100mm engraving area, horizontal & non-horizontal surfaces.
- Efficient batch processing capabilities for labels, logos, QR codes, and more.
- Intelligent autofocus for effortless focus adjustment based on material thickness.
- Upgraded protective covers for hassle-free batch engraving.
- Additional accessories support: chucks, and roller attachments (sold separately) for spherical, cylindrical objects.
- Certifications: CE, UKCA, FCC, ROHS, FDA compliance.
Overview:
Spec:
Laser Type: | 10W Diode Laser |
2W 1064nm Infrared Laser | |
Working Area: | 100 mm x 100 mm |
Input Power: | 12V 9A |
Working Speed: | 10W Diode Laser up to 4000mm/s 2W Infrared Laser up to 5000mm/s |
Preview Speed: | 10000 mm/s |
positioning accuracy: | 0.001mm |
Applicable Materials: | 10w 455nm Diode Laser: Wood, Bamboo, Acrylic, Leather,Fabric, Tinted glass, Rock, Cork, Rubber, Food, Paper, Cardboard,Color glaze ceramics etc. |
2w 1064 nm Infrared Laser: Metal, Plastic, Leather and any material with paint coating, etc. Stainless Steel, Gold, Silver, Platinum, Aluminum, Titanium, Brass, Plastic, Acrylic, Iron, etc. |
|
Cutting Depth: | Wood up to 8mm Black Acrylic up to 5mm |
Preview Mode: | Outline Frame Contour Preview |
Software: | AtomStack Maker |
Operating System: | Mobile - iOS & Android |
PC - MacOS & Windows | |
Safety Certification: | CE, ROHS, FCC, FDA, UKCA |
Weight | Handheld:2.8kG Desktop:4.8KG |
