iKier K1 Pro 1064nm 20W Fiber Laser Marking and Engraving Machine

$1,999.00 $1,399.00 SAVE $600.00

➤ 20W Fiber Laser Power
➤ Cut 0.2mm aluminum cards by one-pass
➤ 900mm/s Ultra-fast working speed
➤ Relief engraving and Rust removal

Plug Type: US Plug

US Plug
EU Plug
UK Plug
AU Plug

paypalvisamasteramerican expressdiscoverapple paygoogle payklarnasofort
  • Warranty:
    1-Year for New Machines

  • Shipping Time:
    Within 1-3 Days

  • International Express:
    3-5 Working Days

  • Liner Logistic:
    7-10 Working Days

Note: Customs duties will be incurred if your order is shipped from China.
Pre-sales: +86 159 8667 9892; +86 137 9752 3312 (Whatsapp)
After-sales:
support@ikier.com

Frequently Bought Together

Total price:

$2,536.99 $1,826.99

SAVE $710.00

Laser Engraving Review and Expert Analysis

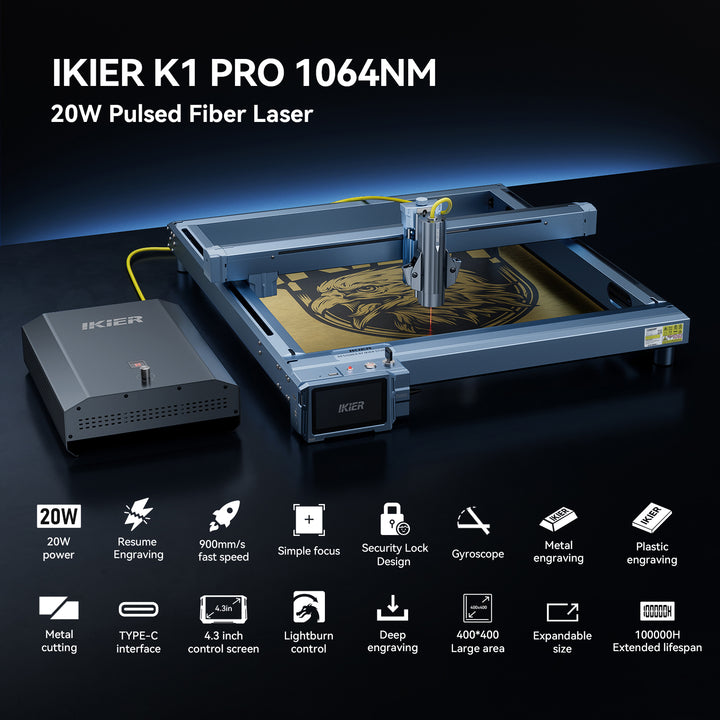

The World's First Professional 1064nm 20W Fiber Frame Type Laser Engraving Machine

20W Fiber Laser Power: The world's first 1064nm wavelength infrared Fiber laser engraving machine with optical power up to 20W;

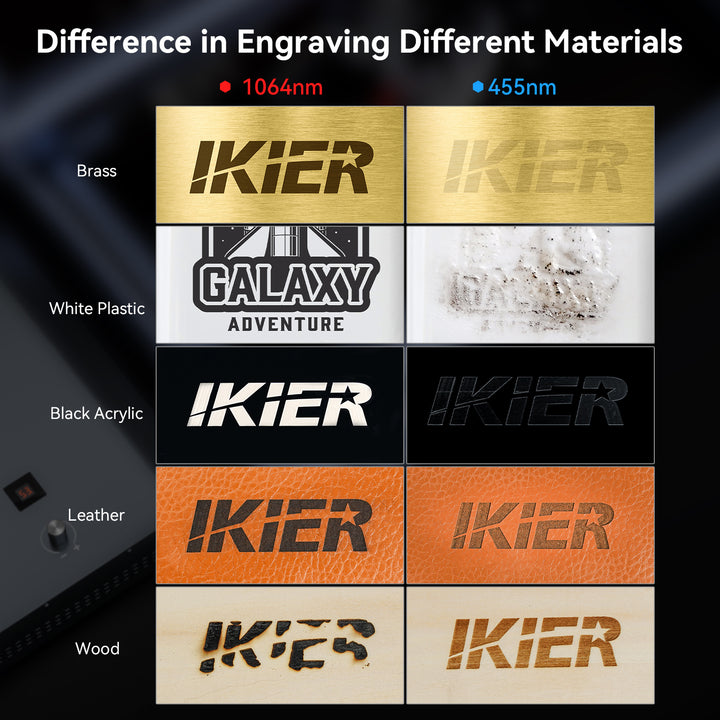

Multi-material application: IKIER 20W infrared laser engraving machine, can be applied to all daily metal (copper, iron, aluminum, zinc, silver, etc.) and plastic high-speed fine engraving, but also in black acrylic, leather, ceramics and rock engraving;

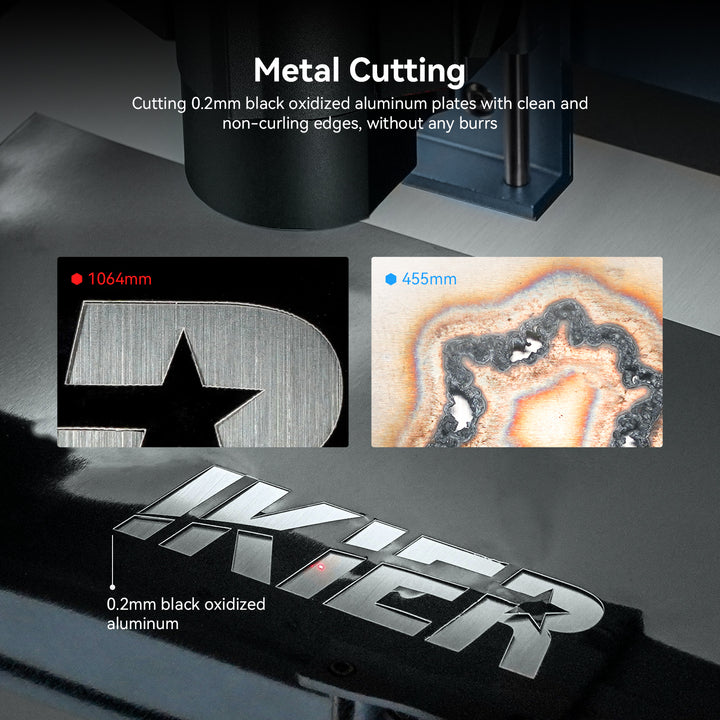

METAL CUTTING: With 20W Fiber Laser power and 0.03*0.06 ultra-fine spot, iKier K1 Pro 1064nm can easily cut 0.2mm aluminum business cards by one-pass;

Resume EngravingIn the face of accidental interruption of the work, IKIER self-developed intelligent motherboard can realize the power failure to continue carving function, continue to work without wasting materials;

Ultra-fast working speed: the machine adopts the movement structure of optical axis + linear guide, more can realize 900mm/s ultra-high-speed high-precision operation, and the engraving accuracy can reach 0.01mm under the limit speed, which greatly improves the working efficiency;

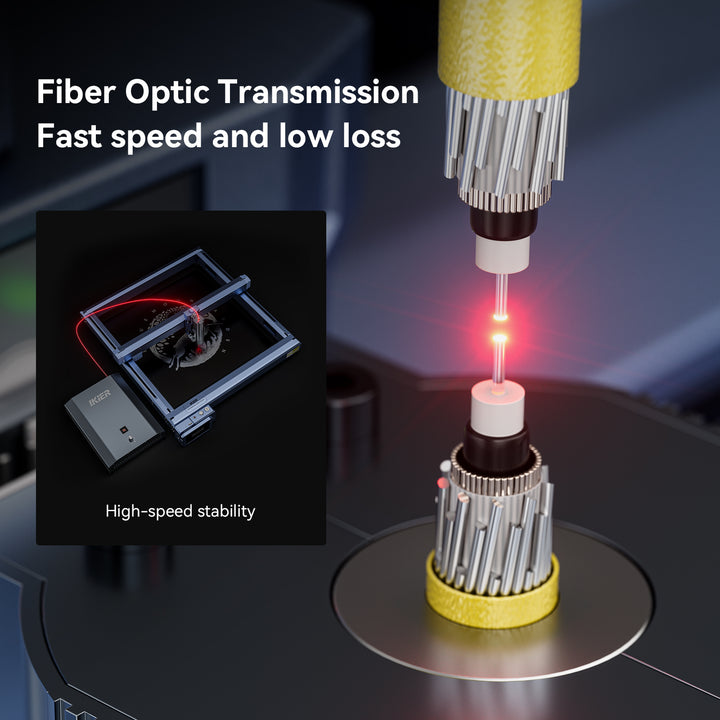

Fiber-optic conduction: The laser energy transmission adopts the fiber-optic conduction method, which can greatly improve the energy transmission efficiency and reduce the energy transmission loss;

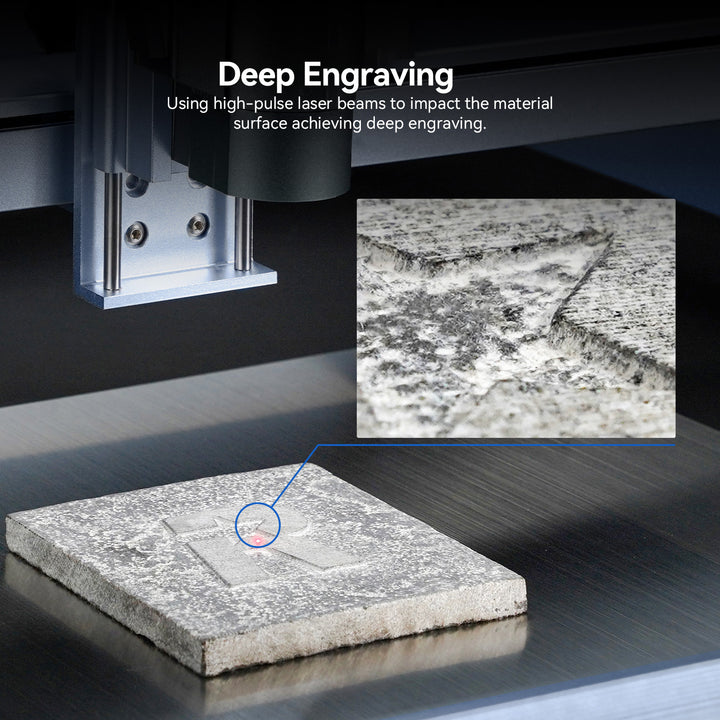

Relief engraving: The 1064nm infrared laser is well suited for deep engraving on neat slate planes, demonstrating a relief effect;

New robust structure: the machine adopts the movement structure of optical axis + linear guide, modular design, 15 minutes quick installation;

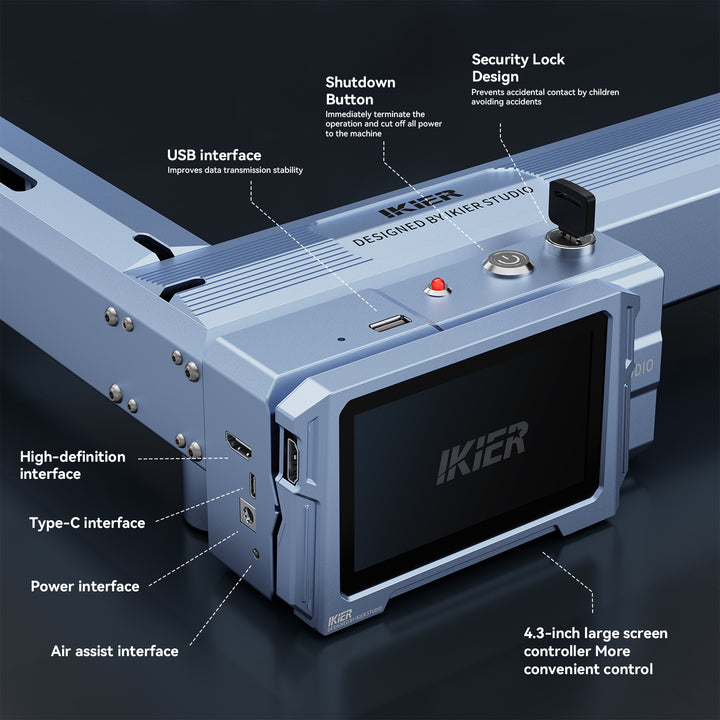

4.3-inch intelligent offline controller: equipped with 4.3-inch LCD touch screen intelligent controller, with more control functions, allowing the machine to get rid of PC limitations and realize offline work;

Rust removal: IKIER K1 PRO 1064nm laser, very suitable for removing the surface rust layer of metal, can quickly laser rust removal on metal;

Safety protection: IKIER always care about the safety of your work, the machine is equipped with a physical switch key, there are sensitive gyroscope displacement detection and limit and other different safety protection devices;

Parameters:

Product Model: IKIER K1 Pro 1064nm
Engraving size: 410*410mm
Laser output optical power: 20W
Maximum speed of high quality engraving: 900mm/s (54000mm/min)
Laser wavelength: 1064nm
Engraving accuracy: 0.01mm
Repeatability: 0.1mm

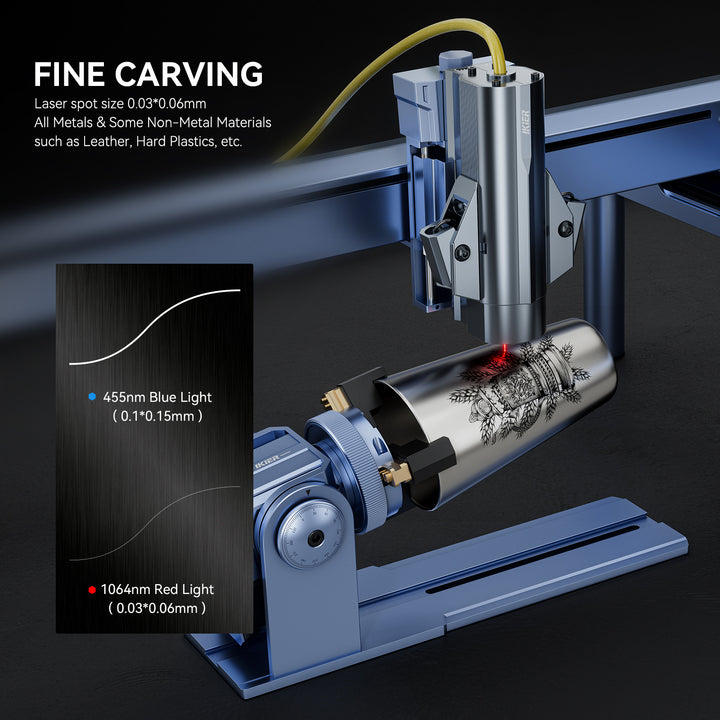

Spot size: 0.03*0.06mm
Limit switches: 3 (1 for X-axis, 2 for Y-axis)
Data transmission mode: Typ-C transmission of computer data, USB interface transmission of offline data, HDMI interface transmission of controller data
Focusing mode: manual adjustment
Controller size: 4.3 inches
Controller function: connecting WiFi, power outage renewal carving, anti-tipping, automatic sinking cutting, parameter setting, work progress viewing
Engravable materials: PCB board, acrylic, aluminum oxide, plating layer and lacquer layer metal, 304 mirror stainless steel, glass, ceramics, cotton, slate, leather;
Cuttable materials: thin stainless steel sheet, thin aluminum sheet;

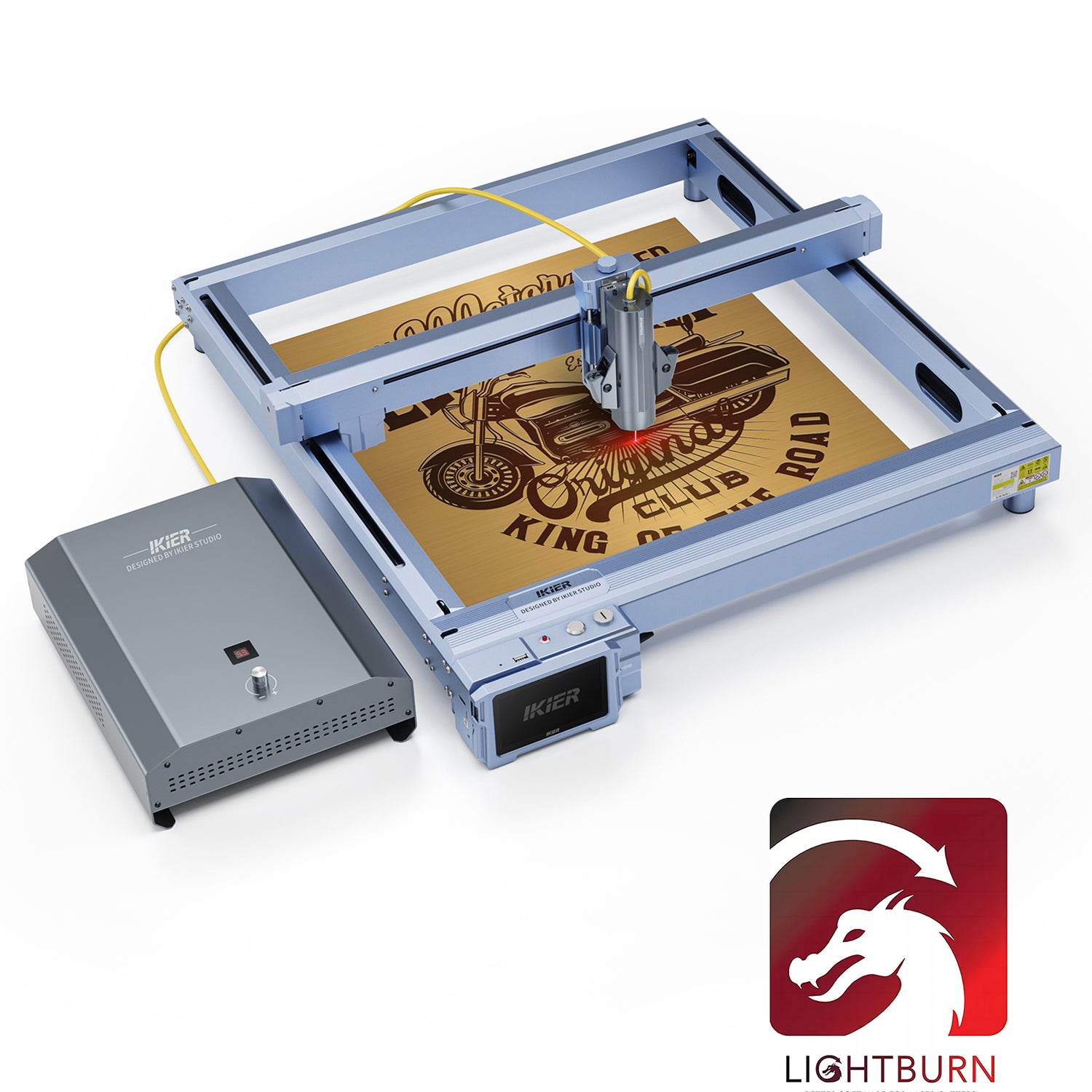

Operating software: LightBurn
Operating system: macOS; Win XP / Win 7 / Win 8 / Win 10 / Win 11
APP Name: IKIER
Supported file formats NC, BMP, JPG, PNG, DXF
Data transfer method: USB connection
Power supply: 24V 7.5A
Certification: CE FCC RoHS FDA PSE

More Details:

Specification

Product Model

IKIER K1 Pro 1064nm

Engraving size

410*410mm

Laser output optical power

20W

Maximum speed of high quality engraving

900mm/s (54000mm/min)

Laser wavelength

1064nm

Engraving accuracy

0.01mm

Repeatability

0.1mm

Spot size

0.03*0.06mm

Limit switches

3 (1 for X-axis, 2 for Y-axis)

Data transmission mode

Typ-C transmission of computer data, USB interface transmission of offline data, HDMI interface transmission of controller data

Focusing mode

manual adjustment

Controller size

4.3 inches

Controller function

connecting WiFi, power outage renewal carving, anti-tipping, automatic sinking cutting, parameter setting, work progress viewing

Engravable materials

PCB board, acrylic, aluminum oxide, plating layer and lacquer layer metal, 304 mirror stainless steel, glass, ceramics, cotton, slate, leather;

Cuttable materials

thin stainless steel sheet, thin aluminum sheet;

Operating software

LightBurn

Operating system

macOS; Win XP / Win 7 / Win 8 / Win 10 / Win 11

APP Name

IKIER

Supported file formats NC, BMP, JPG, PNG, DXF

Data transfer method

USB connection

Power supply

24V 7.5A

Certification

CE FCC RoHS FDA PSE
